Three Row Aluminum Radiator for 1957 - 1960 Ford F100 Pick Up Truck with V8

Three Row Core
All-Aluminum Radiator
for 1957 through 1960 Ford Pick-Up Truck
with V8 Only

not compatible with Inline Six or Flathead Engines





See Compatibility Chart Above and check Specs below
to be sure you are purchasing the correct radiator.

Should you have any questions, do not hesitate
to contact us. We are here to help!

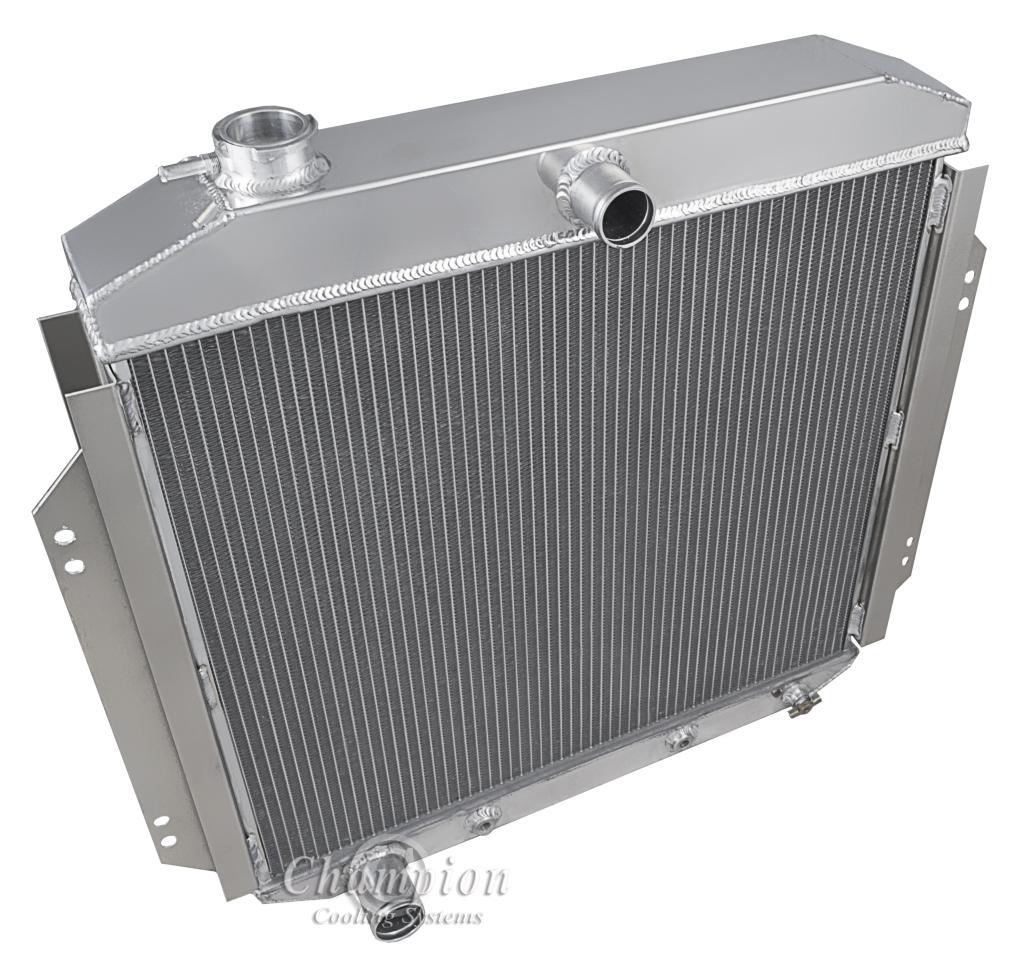

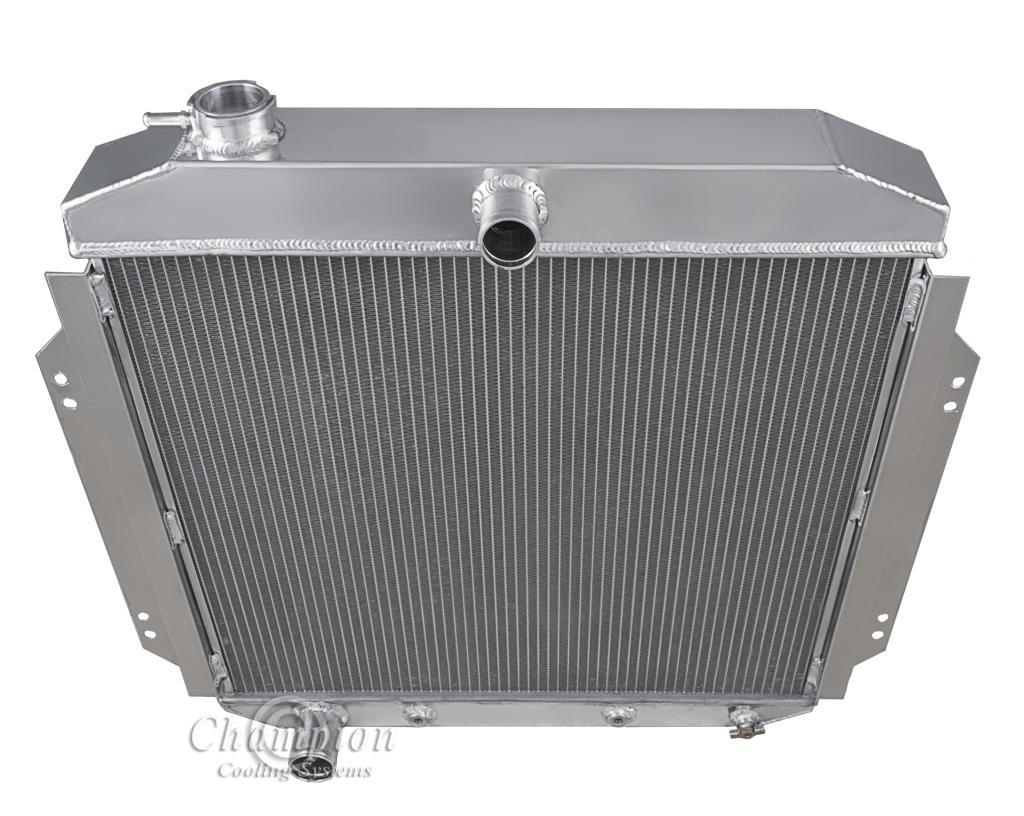

Note: image shows holes drilled for installation in your core support. Yours may come with or without holes drilled. If it comes with no holes pre-drilled, you can drill your holes where needed.

• Radiator Flow: DOWN FLOW
• Core Height: 20 1/8"
• Core Width: 23 7/8"
• Overall Height: 26 3/4"
• Overall Width: 27 3/8"
• Inlet Diameter: 1 1/2"
• Outlet Diameter: 1 3/4"
• Upper Hose Fitting: CENTER
• Lower Hose Fitting: DRIVER
• Trans Cooler Details: 1/2" 20 STRAIGHT THREAD G1/4
• Mounting Type: BRACKET
• Core Thickness: 2 1/4"
• Upper Tank Thickness: 3 1/8"
• Lower Tank Thickness: 2 5/8"


Champion Cooling Products are backed by a Manufacturer's Limited Lifetime Warranty (non-transferrable). At any time after purchase, radiator may be returned for an exchange or refund should it develop a leak of any kind. Purchaser is responsible for shipping of product back to Champion Cooling Systems. Radiator must be Registered with Champion to be eligible for a refund or exchange.

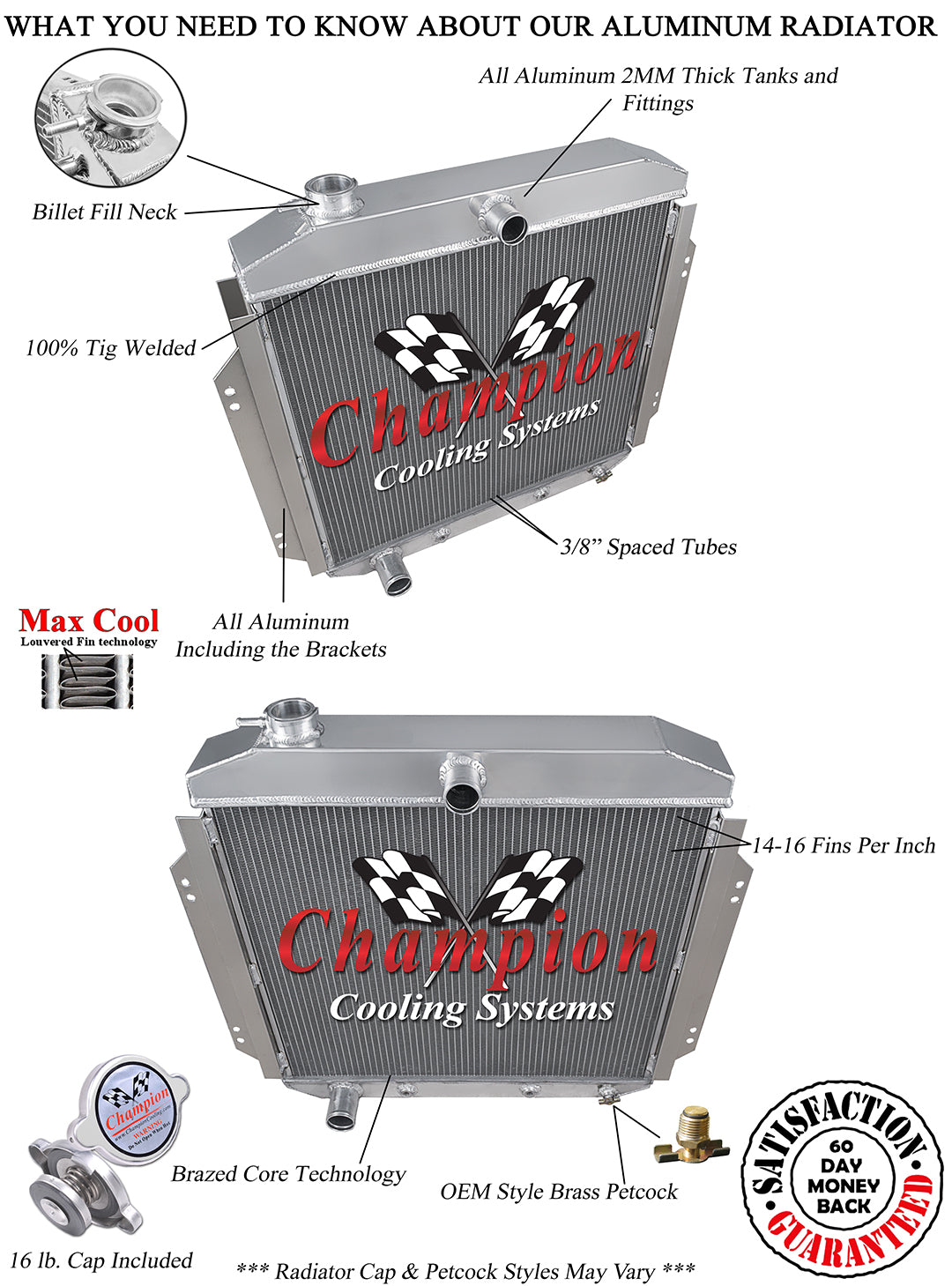

Champion Cooling Systems and American Eagle radiators are manufactured at their ISO certified facility and made to high standards of quality and workmanship using the HIGHEST GRADES of aluminum available. All radiators are constructed with 100% tig-welded seams (no epoxy), brazed core technology, a billet-fill neck and Max Coolâ„¢ Louvered Technology, giving you approx. 25% more rows than similar aluminum radiators. These features combine to give you superior air flow and a cooler-running engine. We also include an OEM-Style Brass Petcock and a High Performance Radiator Caps, and our radiators are designed to install with little or no modifications using your original mounts and fan shroud. Lastly, all of our radiators come with a Manufacturer’s Limited Lifetime Warranty so you can rest assured that your product is engineered to last and we stand behind it 100%.
