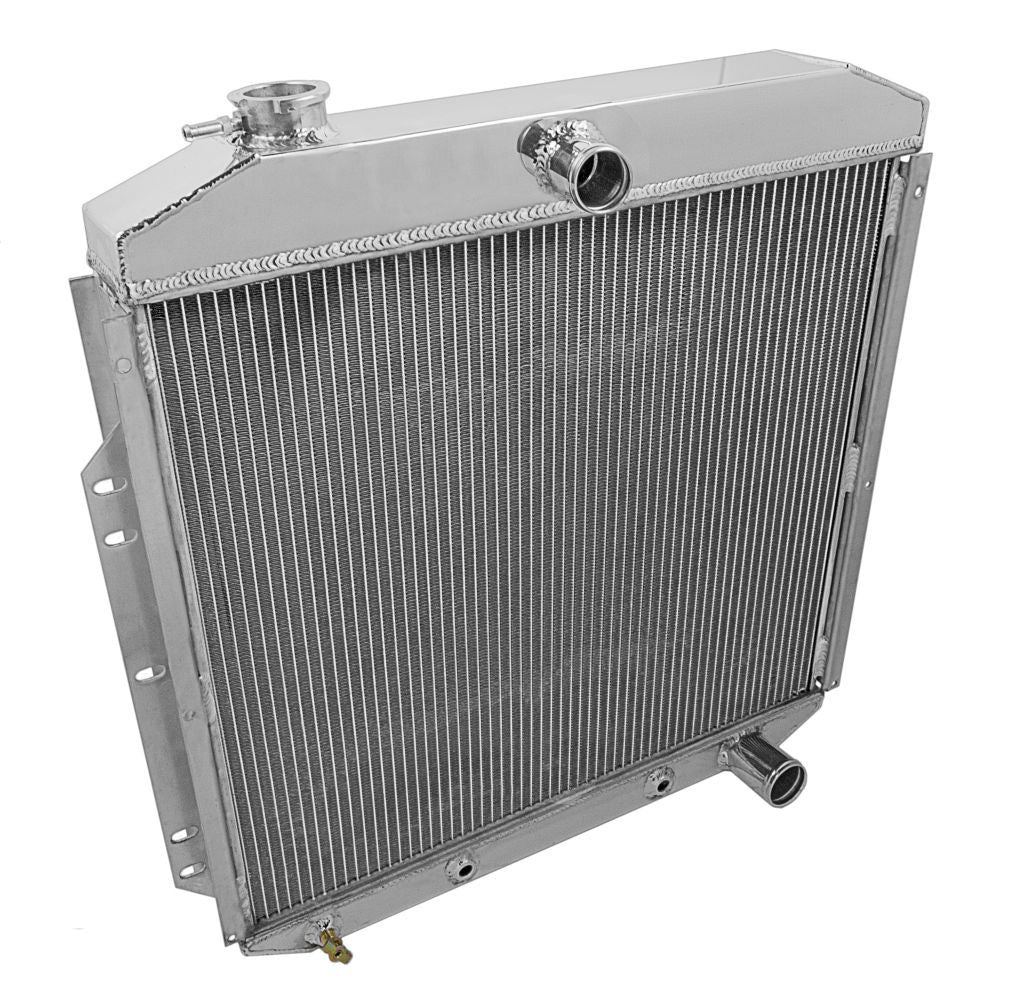

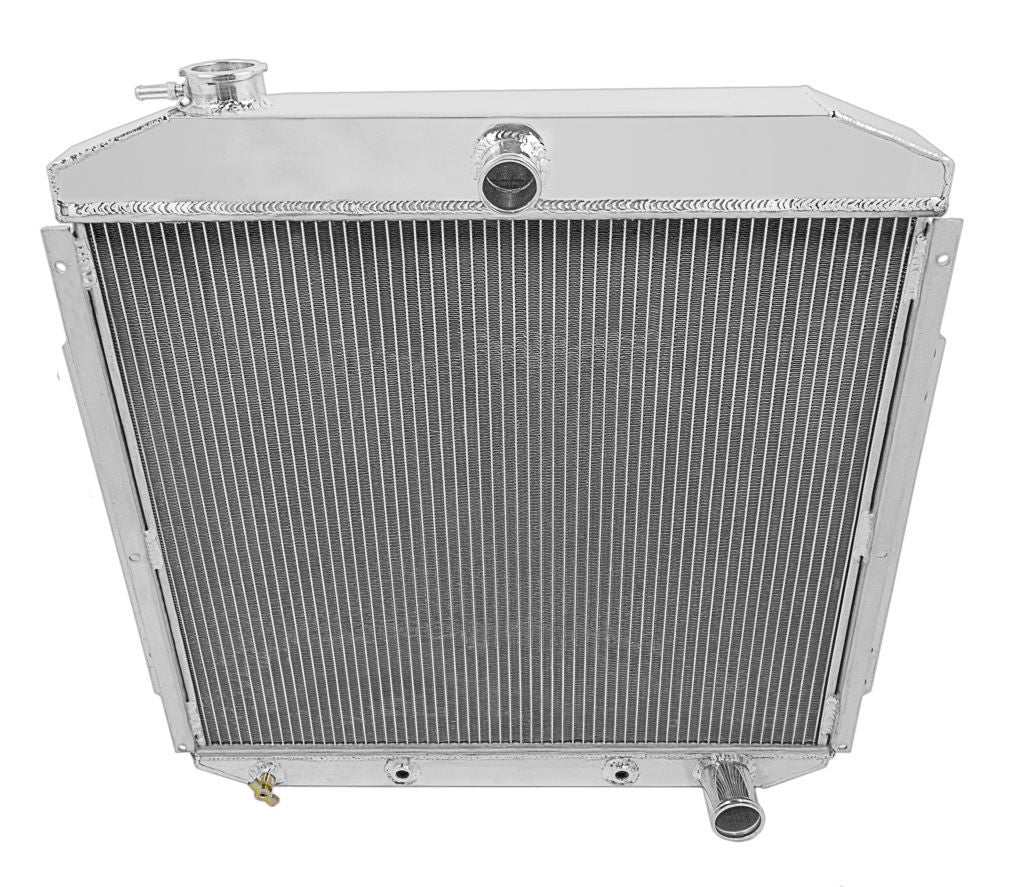

1957 - 1960 Ford F100 Pick Up Truck Inline 6 or Chevy V8 All Aluminum 3 Row

Three Row Core
All-Aluminum Radiator
for 1957 through 1960 Ford Pick-Up Truck
with Inline Six or Chevy Swap V8 Only

not compatible with V8 or Flathead Engines
(Contact us if you need one for a Ford V8)




See Compatibility Chart Above and check Specs below
to be sure you are purchasing the correct radiator.

Should you have any questions, do not hesitate
to contact us. We are here to help!

SPECS

• Radiator Flow: DOWN FLOW
• Core Height: 20 1/8"
• Core Width: 23 7/8"
• Overall Height: 26 3/4"
• Overall Width: 27 3/8"
• Inlet Diameter: 1 1/2"
• Outlet Diameter: 1 3/4"
• Upper Hose Fitting: CENTER
• Lower Hose Fitting: PASSENGER
• Trans Cooler Details: 1/2" 20 STRAIGHT THREAD G1/4
• Mounting Type: BRACKET
• Core Thickness: 2 1/4""
• Upper Tank Thickness 3 1/8"
• Lower Tank Thickness 2 5/8"


Champion Cooling Products are backed by a Manufacturer's Limited Lifetime Warranty (non-transferrable). At any time after purchase, radiator may be returned for an exchange or refund should it develop a leak of any kind. Purchaser is responsible for shipping of product back to Champion Cooling Systems. Radiator must be Registered with Champion to be eligible for a refund or exchange.

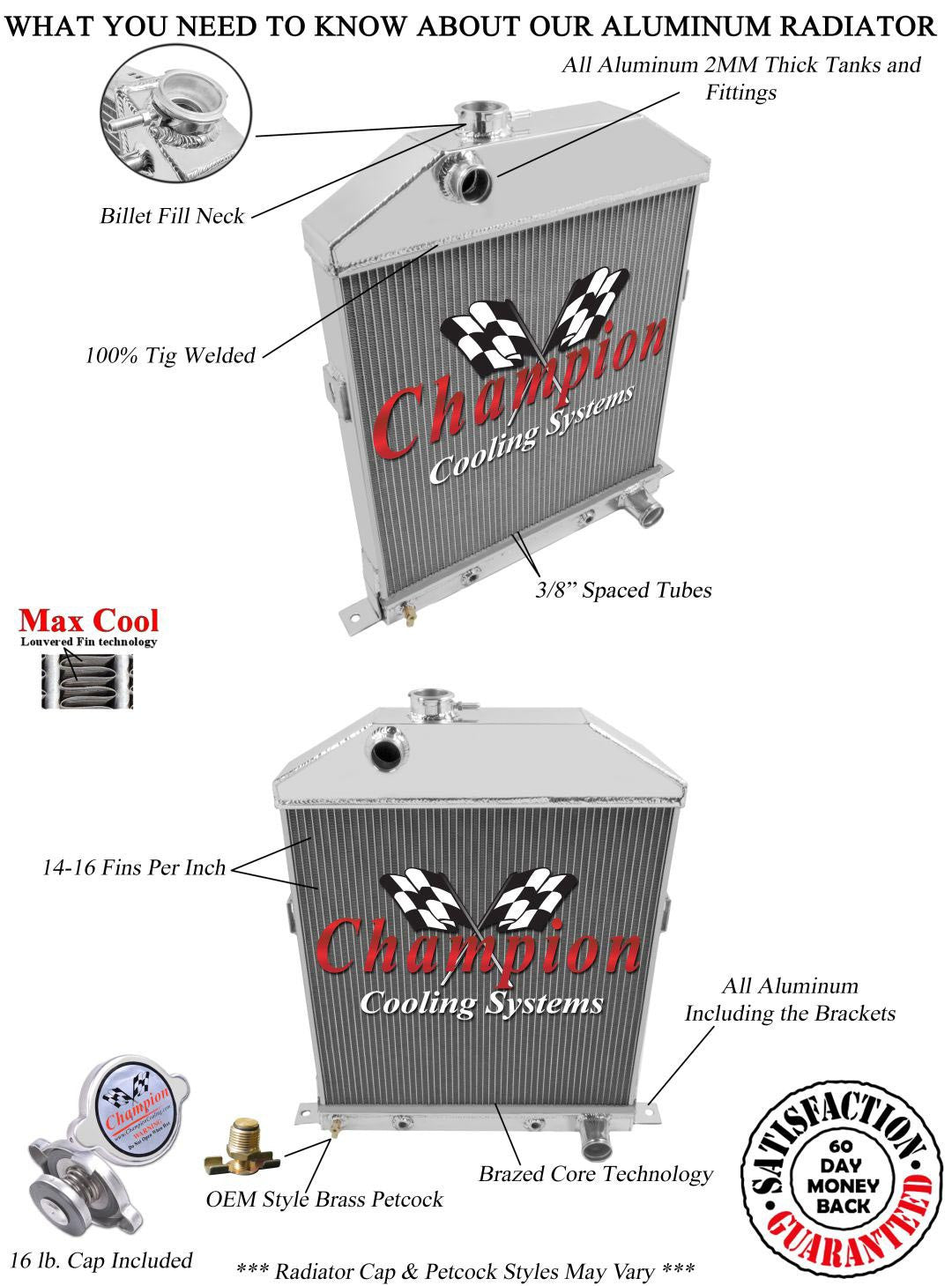

Champion Cooling Systems and American Eagle radiators are manufactured at their ISO certified facility and made to high standards of quality and workmanship using the HIGHEST GRADES of aluminum available. All radiators are constructed with 100% tig-welded seams (no epoxy), brazed core technology, a billet-fill neck and Max Coolâ„¢ Louvered Technology, giving you approx. 25% more rows than similar aluminum radiators. These features combine to give you superior air flow and a cooler-running engine. We also include an OEM-Style Brass Petcock and a High Performance Radiator Caps, and our radiators are designed to install with little or no modifications using your original mounts and fan shroud. Lastly, all of our radiators come with a Manufacturer’s Limited Lifetime Warranty so you can rest assured that your product is engineered to last and we stand behind it 100%.
